How electric current actually flows: a simple guide to voltage, resistance and everyday circuits

Electricity feels mysterious: flip a switch and a room lights up, plug in a phone and it recharges. We use it constantly, yet many people are not sure what is really happening in the wires.

Understanding the basics of electric current makes home gadgets less confusing, safety advice more meaningful and school diagrams easier to follow. This explainer walks through the key ideas using simple analogies and real‑world examples.

Electric charge: the invisible “stuff” that moves

At the heart of electricity is electric charge. In metals like copper, tiny particles called electrons can move from atom to atom. You can think of them as very small, negatively charged “beads” that are free to slide along the metal.

When these beads drift in a coordinated way through a wire, we call that electric current. The wire is already full of electrons, so a current is more like a push that makes them shuffle along, not a stream of new particles arriving from a power plant.

Voltage: the push that drives current

Voltage is a measure of how strongly charges are being pushed. A useful analogy is water in a pipe. Voltage is like water pressure: higher pressure means water tends to flow more. Similarly, higher voltage tends to drive more electric current.

In symbols, voltage is written asVand measured in volts. Typical values are about 1.5 V for a small battery or a much higher value at a wall outlet, depending on the country. The exact mains voltage can vary, so it is worth checking local standards if you need precise numbers.

Current: how much charge passes each second

Electric current tells you how much charge is flowing through part of a circuit each second. In the water analogy, it matches the amount of water passing a point in a pipe per second. More current means more electrons are shuffling through the wire every moment.

Current is written asIand measured in amperes, or amps for short. Small gadgets often use currents much less than one amp, while large appliances can use several amps or more.

Resistance: how much the path “gets in the way”

Even with a strong push, not all paths are equal. Resistance tells you how much a material or component opposes the flow of current. A narrow, rough pipe slows water; a thin, long or poorly conducting wire resists electric current.

Resistance is written asRand measured in ohms. All real wires have some resistance. Special parts called resistors are designed to have a specific resistance so they can control current and voltage in a circuit.

Ohm’s law: the key relationship between V, I and R

For many simple circuits, voltage, current and resistance are linked by a compact relationship called Ohm’s law:

V = I × R

This means that for a given resistance, doubling the voltage doubles the current. For a fixed voltage, doubling the resistance halves the current. It is like saying water flow depends on both pressure and how narrow the pipe is.

Why some appliances need more power

Power is the rate at which electrical energy is converted to other forms, such as heat, motion or light. It is written asPand measured in watts. A simple way to estimate electrical power is:

P = V × I

So if an appliance runs at a given voltage and draws a certain current, you can estimate how much power it uses. For example, a 1000 W kettle uses much more power than a 10 W LED bulb, which is why the kettle heats water quickly but should not share an overloaded extension strip.

Series and parallel: two basic ways to connect components

How you connect components in a circuit changes what happens to voltage and current. In aseriesconnection, parts are arranged one after another along a single path. The same current flows through each, but the voltage is shared between them.

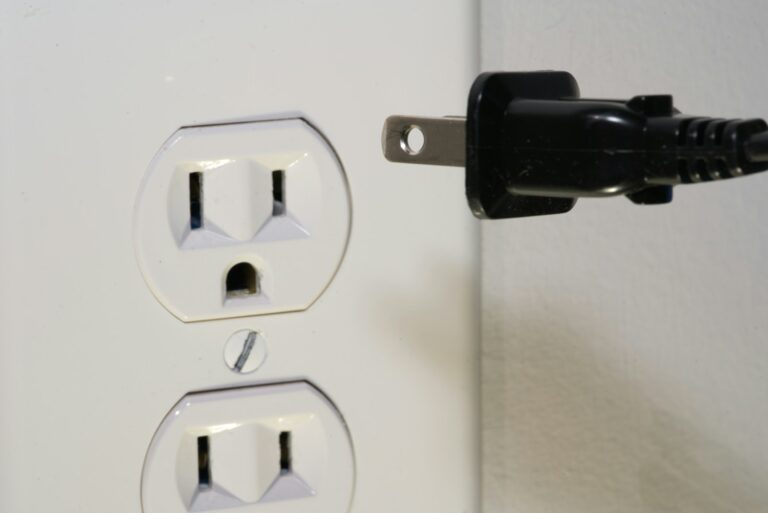

In aparallelconnection, parts are connected side by side between the same two points. Each part gets the same voltage, but the total current from the source is split between the branches. Home sockets are typically wired in parallel, so each device receives the full mains voltage.

Everyday examples of these ideas

A string of old holiday lights offers a practical example. In some older designs, all bulbs are in series. If one bulb fails open, the entire chain stops, because the current path is broken. In newer designs, bulbs are arranged more cleverly so one failure does not always stop the whole string.

Phone charging is another example. A charger outputs a relatively low, controlled voltage. The charging current depends on the phone’s internal circuitry and battery state, which behave like a changing resistance. That is why your phone may charge quickly at first, then slow down as it approaches full charge.

Safety: why these basics help in real life

Basic circuit ideas help make sense of common safety advice. Overloading an extension lead effectively lowers the total resistance of the connected devices in parallel, so more current flows. If the current becomes too high, wires can overheat.

Circuit breakers and fuses are designed to interrupt the flow if current exceeds a safe limit. They do not prevent all hazards, but they are an important layer of protection. Following local regulations and manufacturer guidance remains essential for safe use of electrical equipment.

How to build your intuition further

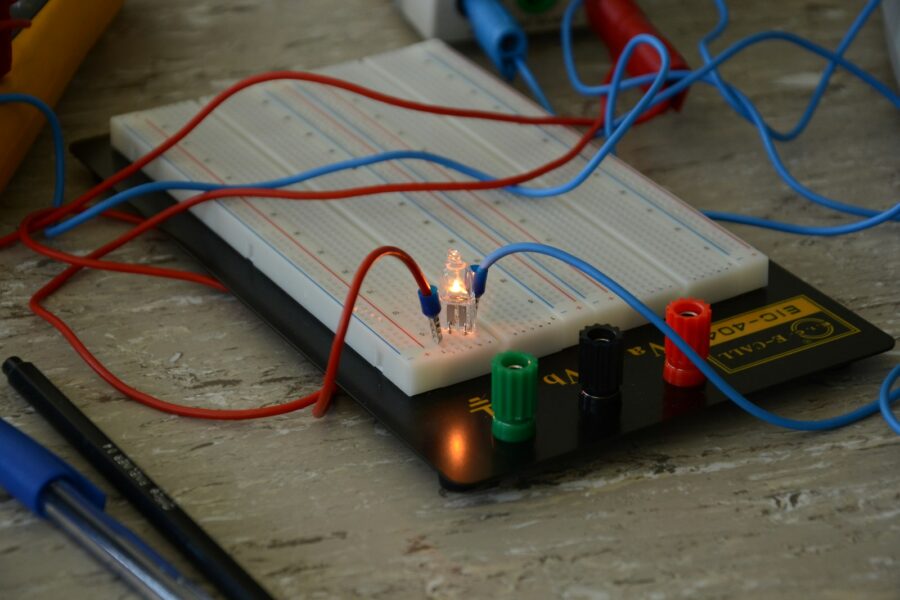

If you want a deeper feel for these concepts, small, low-voltage experiments can help. For example, using a battery, some small bulbs and different lengths of wire, you can see how brightness relates to voltage and resistance. Always keep such activities within safe voltage and current limits.

Online circuit simulators are another option. They let you draw simple circuits, adjust resistance or voltage and see how current and power change, all without real wires. This can turn abstract formulas into something you can explore and test.

Key ideas to remember

Three ideas unlock a lot of everyday electricity: voltage is the push, current is how much charge flows per second and resistance is how much the path resists that flow. Together, they determine how energy moves from a source into bulbs, motors and other devices.

Once you see electric circuits as loops where energy is pushed, resisted and converted, wall outlets and gadget chargers feel less mysterious, and safety instructions start to make practical sense.
