How electricity flows like water in a pipe and why that helps you understand your home wiring

Electricity can feel mysterious: you flip a switch, a lamp turns on, and somewhere hidden in the walls something powerful is happening. Yet most everyday electrical ideas can be understood with a simple picture in mind, similar to water flowing in pipes.

This article walks through the basics using that analogy. It will not turn you into an electrician, but it can help you read device labels, make safer choices at home, and feel less intimidated by volts, amps and watts.

Electric current: the “flow” in the wire

At its simplest, electricity in a wire is the movement of tiny charged particles called electrons. You can imagine them like water molecules traveling through a pipe. The rate at which they flow is calledcurrent, and its unit is theampere(A), usually shortened to “amp.”

If more electrons pass a given point each second, the current is higher, just like more liters per second means a stronger stream of water. A thick wire can safely carry more current, the way a wide pipe can carry more water.

Voltage: the “pressure” that pushes the flow

Current does not flow by itself, it needs a push. In a water system, a pump or height difference creates pressure. In an electrical circuit,voltageplays a similar role. Voltage is measured involts(V).

A higher voltage means a stronger electrical “pressure” pushing charges through the circuit. This does not automatically mean more current will flow; it also depends on how easy the path is, just as a narrow pipe restricts water flow even if the pressure is high.

Resistance: how strongly a path “pushes back”

Every wire, device or material resists electric flow to some degree. This opposition is calledresistance, measured inohms(Ω). In the water analogy, resistance is like friction inside the pipe or a partially closed valve.

Good conductors, such as copper, have low resistance, so current flows easily. Poor conductors, like rubber or dry wood, have very high resistance, which is why they are used as insulators to keep electricity safely contained.

Ohm’s law: the simple rule that links them

The relationship between voltage, current and resistance is captured in a simple rule known asOhm’s law. In symbols, it is often written as:

V = I × R

Here V is voltage, I is current and R is resistance. You can rearrange this to find whichever quantity you are interested in. For example,I = V ÷ Rtells you that higher voltage or lower resistance produces more current, just like more pressure or a larger pipe gives more water flow.

Power: how fast energy is being used

So far we have looked at movement of charge and what drives it. To understand household devices, it is useful to talk aboutpower, measured inwatts(W). Power tells you how fast energy is being converted, for example into heat, motion or light.

In simple circuits, power is calculated as:

P = V × I

This means a device using more current at the same voltage uses more power. A 1000 W kettle uses energy much faster than a 10 W LED bulb, which you see as higher heat and quicker water boiling.

How this helps with everyday decisions

Many home choices become clearer once you connect volts, amps and watts. For example, power strips often have a maximum current rating in amps. If you know your mains voltage, you can estimate the total power you should not exceed using P = V × I.

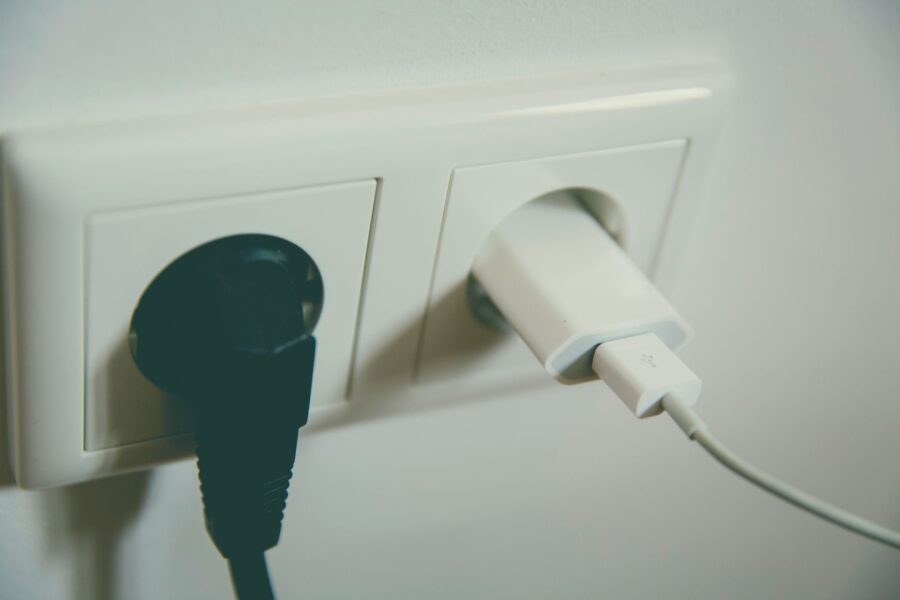

You can also read appliance labels more meaningfully. A phone charger might say “5 V, 2 A” which suggests a maximum of about 10 W. A portable heater might say “2000 W,” which already tells you it uses far more energy, produces much more heat, and should be plugged in thoughtfully according to local safety advice.

Why high current can be dangerous

In many everyday situations, it is high current that creates the biggest risk. When a lot of current flows through resistance, energy turns into heat. In wires not designed for it, this can cause overheating.

Fuses and circuit breakers are mainly there to limit current. If too much flows, they cut off the circuit. You can think of them as automatic valves that close when the water rushes too fast, to prevent damage to pipes and connected equipment.

Direct current and alternating current

There are two main kinds of electric flow. Indirect current(DC), electrons move steadily in one direction, similar to water running down a straight channel. Batteries provide DC, which is why many small electronics use it.

Inalternating current(AC), the direction of flow reverses many times per second. You can picture this as water sloshing back and forth in a pipe while still delivering energy to devices. Most household mains supplies use AC, because it is efficient to generate and transport over long distances.

Safe curiosity at home

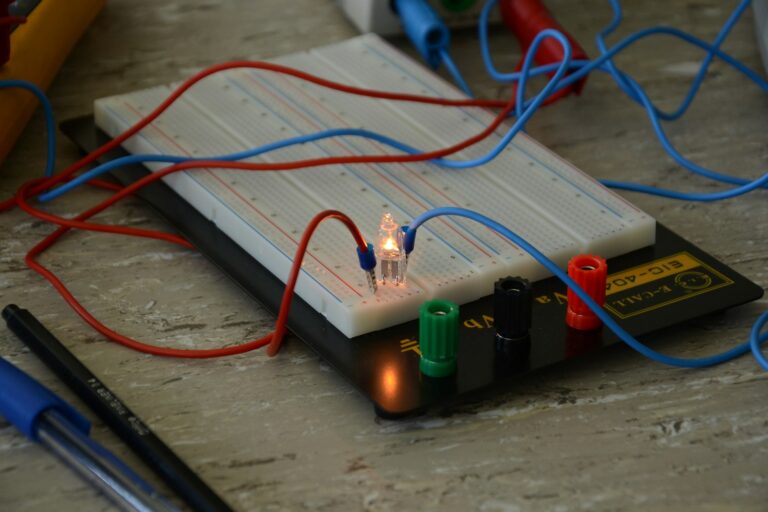

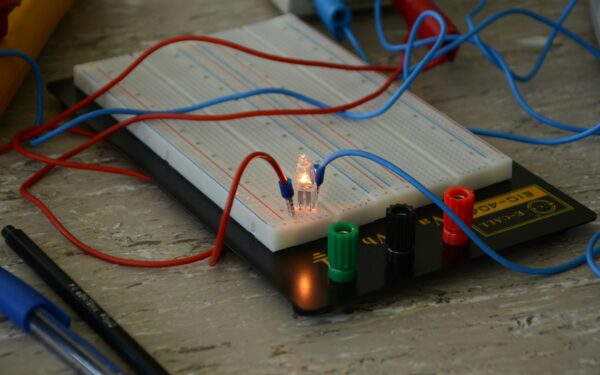

If this has made you more curious, there are low-risk ways to explore. Simple battery powered kits, with clear instructions and components designed for learners, can show how current, voltage and resistance interact without involving wall outlets.

For anything connected to household wiring, it is important to follow local regulations and manufacturer instructions. If you are unsure about an electrical change at home, such as installing new outlets or lighting, check with a qualified electrician rather than experimenting.

Key ideas to remember

To summarise, you can keep three simple pictures in mind. Current is like the flow rate of water, voltage is like the pressure that drives that flow, and resistance is like the restriction in the pipe.

From those, power tells you how fast energy is being used. With this small toolkit, labels become less mysterious, and everyday choices about devices and wiring can be made with a little more understanding and a lot more confidence.
