How electricity flows in your home: a simple guide to circuits, safety and smart use

Electricity quietly powers almost everything at home: lights, chargers, fridges, Wi-Fi routers and more. We rarely think about what is happening in the wires until a fuse trips, a device overheats or an energy bill jumps.

Understanding a few basic ideas about electricity can make you safer, help you use devices more wisely and make confusing terms like “circuit” or “short” much easier to follow when something goes wrong.

What electricity really is in simple terms

At the smallest scale, electricity is about tiny charged particles called electrons moving through materials. In metals such as copper, some electrons are free to move, so they can carry energy from one place to another.

It helps to compare electricity to water in pipes. Voltage is a bit like water pressure, current is like the flow rate and resistance is like how narrow or blocked the pipe is. The details are different, but this analogy is useful for building intuition.

Voltage, current and resistance: the core trio

Three basic quantities describe what is happening in a circuit: voltage (V), current (I) and resistance (R). Together they are linked by a relationship known as Ohm’s law: V = I × R. You do not need to calculate this daily, but it explains many familiar situations.

Voltage is the “push” that drives electrons through a material. In many households, wall outlets provide a roughly fixed voltage, depending on the country. Exact numbers and plug types vary, so if you travel or buy equipment from abroad, it is wise to check compatibility.

Current is how many electrons flow per second through a wire, measured in amperes (amps). Higher current means more energy is being delivered to a device each second, which is why thick cables are used for ovens or heaters and thinner ones for lamps or chargers.

Resistance measures how strongly a material opposes the flow of current. A very high resistance behaves almost like an off switch, while a very low resistance allows a large current, which can cause overheating if the wiring is not designed for it.

What a circuit is and why it must be complete

A circuit is simply a closed path that allows electric current to flow from a source, through devices, and back to the source. If the path is broken (for example, a switch is off or a wire is disconnected), the circuit is open and current stops.

Many home circuits are arranged in parallel, not in one long chain. This means each outlet or light has its own branch. If one lamp fails, the others usually keep working, because there is still a complete path for current through their branches.

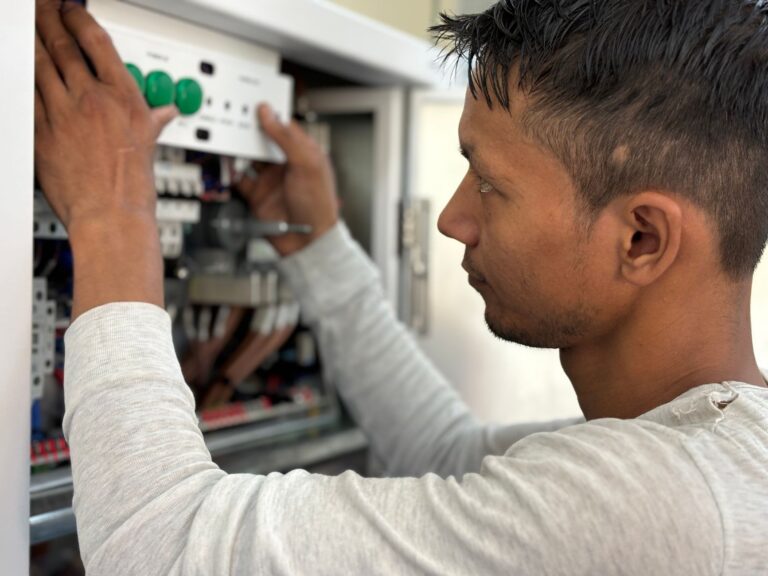

Why fuses and breakers trip

Fuses and circuit breakers are safety devices that disconnect power if something unusual happens. They are designed to react to two main problems: too much current (overload) or a fault that could cause a shock or fire.

An overload happens when many high-power devices share the same circuit. For example, using a heater, a hair dryer and several other appliances on one extension strip can draw more current than the wiring and protection are rated for.

Modern systems often use devices that also detect leakage, such as a residual current device (the exact name varies by region). If current starts flowing somewhere it should not, like through a damaged cable into a wet surface, they cut power quickly to reduce the risk of harm.

Power and energy: what affects your bill

Two related ideas explain how much electricity devices use: power and energy. Power is the rate at which a device uses electrical energy, measured in watts (W). A 60 W bulb uses less power than a 1000 W kettle.

Energy is power used over time. On bills it is often shown as kilowatt-hours (kWh). A 1000 W (1 kW) device running for one hour uses 1 kWh. That is the same energy as a 500 W device running for two hours or a 100 W device for ten hours.

To reduce energy use, you can decrease power (choose more efficient devices) or reduce running time. For example, LED bulbs provide similar light using far fewer watts than older incandescent bulbs, so the energy used each hour is lower.

Simple safety habits around electricity

Basic electrical concepts are useful, but everyday safety also depends on habits. Water conducts electricity, and so does the human body to some extent, so combining wet conditions with electrical equipment is especially risky.

• Keep mains-powered devices and extension strips away from sinks, bathtubs and outdoor puddles.
• Unplug a device by holding the plug, not yanking the cable, to avoid internal damage.
• Do not overload extension leads with multiple high-power heaters or cooking appliances.
• If you notice a burning smell, buzzing outlet, hot plug or scorched mark, stop using that outlet and seek qualified help.

In many countries, major home electrical work (such as modifying wiring or installing new circuits) is regulated and should only be done by licensed professionals. If you are unsure whether a repair is safe for a beginner, it is better to ask an expert than to guess.

Using what you know: reading labels and making choices

The next time you look at a device label, you will probably see voltage, current and power listed. If a device says 230 V, 0.5 A, you can estimate its power: about 115 W, since power is roughly voltage times current.

This understanding can help you compare devices and make safer choices. For example, if several high-power appliances are plugged into the same circuit and lights flicker when they run, that circuit may be close to its limit and deserves attention.

Electricity is not mysterious magic. It follows consistent rules that you can grasp with a few clear ideas and a couple of practical analogies. With that foundation, safety advice and technical details start to feel less like jargon and more like common sense.
